What Is a Bubble Chart?

Data doesn't live in a flat world. When you're juggling three variables at once—say, revenue, profit margin, and market share—you need a visual that can handle the complexity. That's where bubble charts shine. They pack three dimensions of data into a single, scannable view. But they're also easy to mess up. Size a bubble wrong, crowd too many data points together, or skip clear labels, and you'll confuse your audience instead of enlightening them. This guide walks you through what bubble charts are, when to use them, how they stack up against other data graphs, and how to build one that actually communicates.

Understanding Bubble Charts and Their Components

A bubble chart is a type of data chart that displays three variables using Cartesian coordinates. Two variables map to the x-axis and y-axis, just like a scatter plot. The third variable controls the size of each bubble. Larger bubbles represent higher values; smaller bubbles represent lower ones.

Each bubble is a data point. Its position tells you two things, and its size tells you a third. This makes bubble charts powerful for spotting patterns across multiple dimensions at once.

The basic structure is straightforward. The horizontal axis (x-axis) measures one continuous variable. The vertical axis (y-axis) measures another. And the area of each circle encodes the third variable. Some designers add a fourth dimension through color, though this can backfire if the palette isn't intuitive.

Interpreting a bubble chart requires scanning for clusters, outliers, and trends. Are the largest bubbles concentrated in one corner? Do smaller bubbles follow a linear path? These patterns tell stories that tables and bar charts can't.

One common mistake: encoding the third variable by radius instead of area. Humans perceive area more accurately than radius, so always size bubbles by area. A bubble twice as large in value should have twice the area, not twice the diameter.

A bubble chart can reveal relationships that remain hidden in simpler graphs, but only if you resist the urge to cram too much data into a single view.

— Few Stephen

When to Use a Bubble Chart for Data Visualization

Bubble charts work best when you need to compare entities across three numeric dimensions simultaneously. Think of scenarios like comparing products by price, sales volume, and profit margin. Or cities by population, GDP, and pollution levels.

They excel when your data set has 10 to 50 data points. Too few, and a simple table works better. Too many, and the bubbles overlap into a mess.

You'll want a bubble chart when relationships matter more than precise values. If your audience needs to see which products are high-revenue but low-margin, or which markets are growing fast but still small, bubbles deliver that insight faster than a data graph with separate bars or lines.

Bubble charts outperform standard scatter plots when that third variable adds meaningful context. Without it, you're better off with a plain scatter plot. The extra dimension should answer a question your audience actually has.

Author: Camille Norcross;

Source: bostongolang.org

They're also useful for portfolio analysis, risk assessment, and market segmentation. Any time you're balancing trade-offs between three factors, bubbles can clarify the landscape.

But avoid bubble charts when precision is critical. Estimating exact values from bubble size is hard. If your audience needs to know that a metric is 47.3 instead of 45.8, use a table or bar chart.

The pattern I see most often is people choosing bubble charts for visual flair rather than analytical need. If two dimensions tell the story, don't force a third.

Bubble Chart vs Other Data Visualization Types

Choosing the right chart type depends on your data structure and the story you want to tell. Here's how bubble charts compare to three common alternatives.

Bubble Chart vs Grouped Bar Chart

Grouped bar charts display multiple categories side by side, with bars representing values. They're excellent for comparing discrete categories across one or two variables.

A grouped bar chart works when you have categorical data—regions, product lines, departments—and you want to compare them on one or two metrics. Bars make it easy to compare exact values. You can see at a glance which region had the highest sales in Q4.

Bubble charts, on the other hand, handle continuous variables and add a third dimension. If you want to compare regions by sales (x-axis), growth rate (y-axis), and market size (bubble size), a grouped bar chart can't do that. You'd need three separate bar charts.

The trade-off: grouped bar charts are easier to read for precise values. Bubble charts reveal multivariate relationships but sacrifice precision.

Bubble Chart vs Lollipop Chart

A lollipop chart is a variation of a bar chart. It uses a line with a dot at the end instead of a solid bar. This reduces visual clutter and works well for ranking or showing change over time.

Lollipop charts shine when you're comparing a single variable across many categories. They're cleaner than bar charts when you have 15 or 20 items to rank. The dot draws the eye to the value, and the line anchors it to the axis.

But lollipop charts are one-dimensional. They can't encode a second or third variable the way a bubble chart can. If you need to show how sales, profit, and customer satisfaction relate for 20 products, a lollipop chart won't cut it.

Use a lollipop chart for simple rankings. Use a bubble chart when relationships between three variables matter more than exact ranks.

Bubble Chart vs Mekko Chart

A mekko chart (also called a marimekko chart) combines a stacked bar chart with variable column widths. The width of each column represents one variable, and the height of each segment within the column represents another. It's powerful for showing part-to-whole relationships across two dimensions.

Mekko charts are ideal for market share analysis. Imagine showing market share by region (column width) and by product category (segment height). You can see both the size of each region and how product mix varies across regions.

Bubble charts can't show part-to-whole relationships as clearly. They're better for showing how individual entities compare across three independent variables, not how parts combine into a whole.

The mekko chart's weakness: it's harder to interpret. Many audiences aren't familiar with variable-width columns. Bubble charts are more intuitive, even if they're less precise.

Here's a side-by-side comparison:

How to Create a Bubble Chart

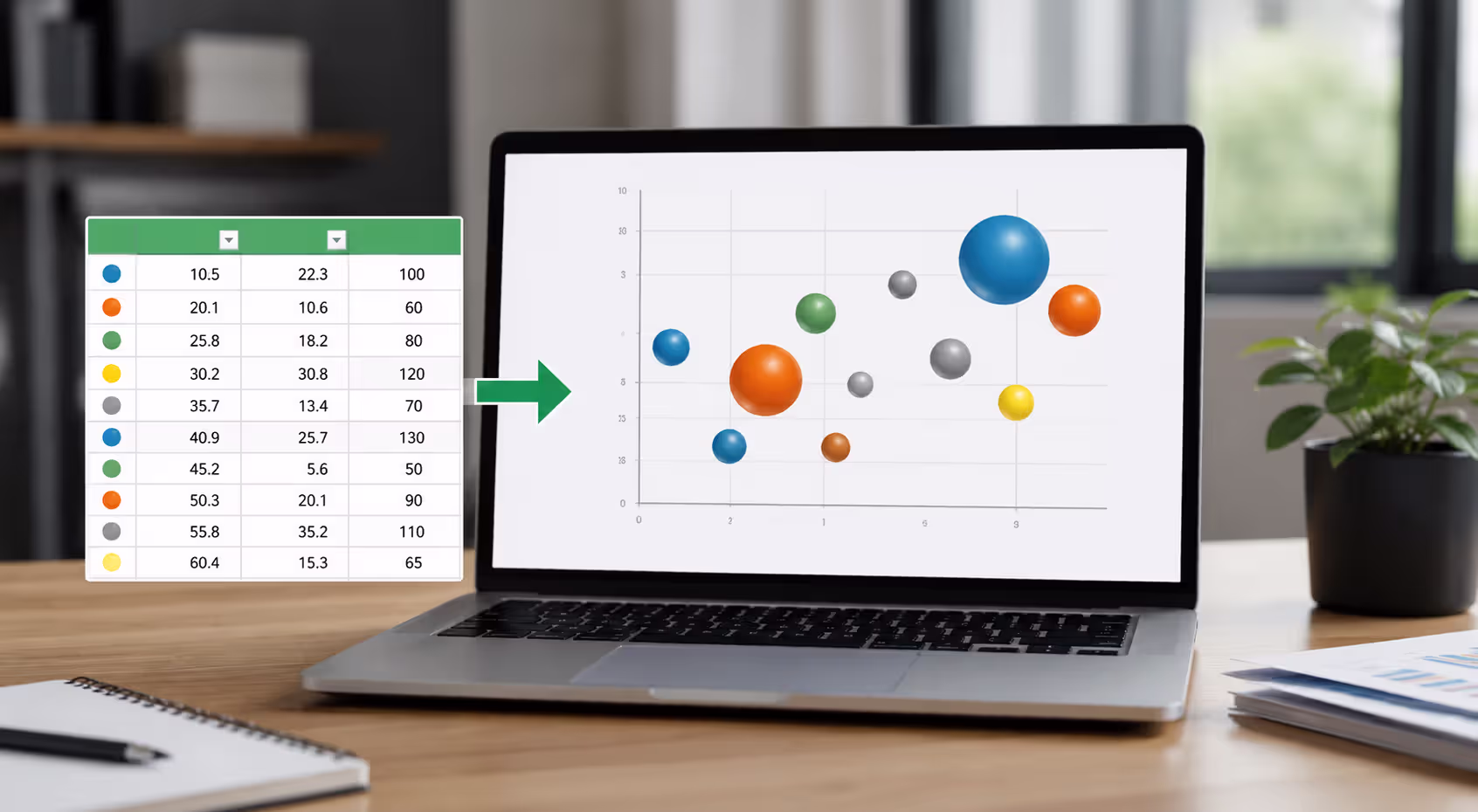

Building a bubble chart starts with your data. You need three numeric columns: one for the x-axis, one for the y-axis, and one for bubble size. Optionally, you can add a fourth column for color coding by category.

First, clean your data. Remove duplicates, handle missing values, and make sure your size variable has a meaningful range. If all your bubbles will be roughly the same size, the chart won't add value.

Next, choose your tool. Excel and Google Sheets both support bubble charts natively. In Excel, select your data, go to Insert > Charts > Scatter, and choose the bubble chart option. In Google Sheets, the process is similar: Insert > Chart, then change the chart type to bubble chart.

Author: Camille Norcross;

Source: bostongolang.org

For more advanced features, web chart libraries like Chart.js, D3.js, or Plotly give you full control over interactivity, animation, and styling. Tableau and Power BI are excellent for business intelligence dashboards with interactive bubble charts.

When sizing bubbles, scale by area, not radius. Most tools do this automatically, but double-check. A common mistake is using linear scaling on radius, which exaggerates differences.

Label your axes clearly. Include units (dollars, percentages, counts). If bubbles overlap, consider adding transparency so users can see overlapping data points. A 50–70% opacity works well.

Color coding helps when you're comparing categories. Use distinct, colorblind-friendly palettes. Avoid red-green combinations. Tools like ColorBrewer can help you pick accessible colors.

Add a legend for bubble size. Show what a small, medium, and large bubble represent. Without this, users will guess—and they'll guess wrong.

Finally, test your chart with a colleague. Ask them to describe what they see. If they can't identify the main pattern in five seconds, simplify.

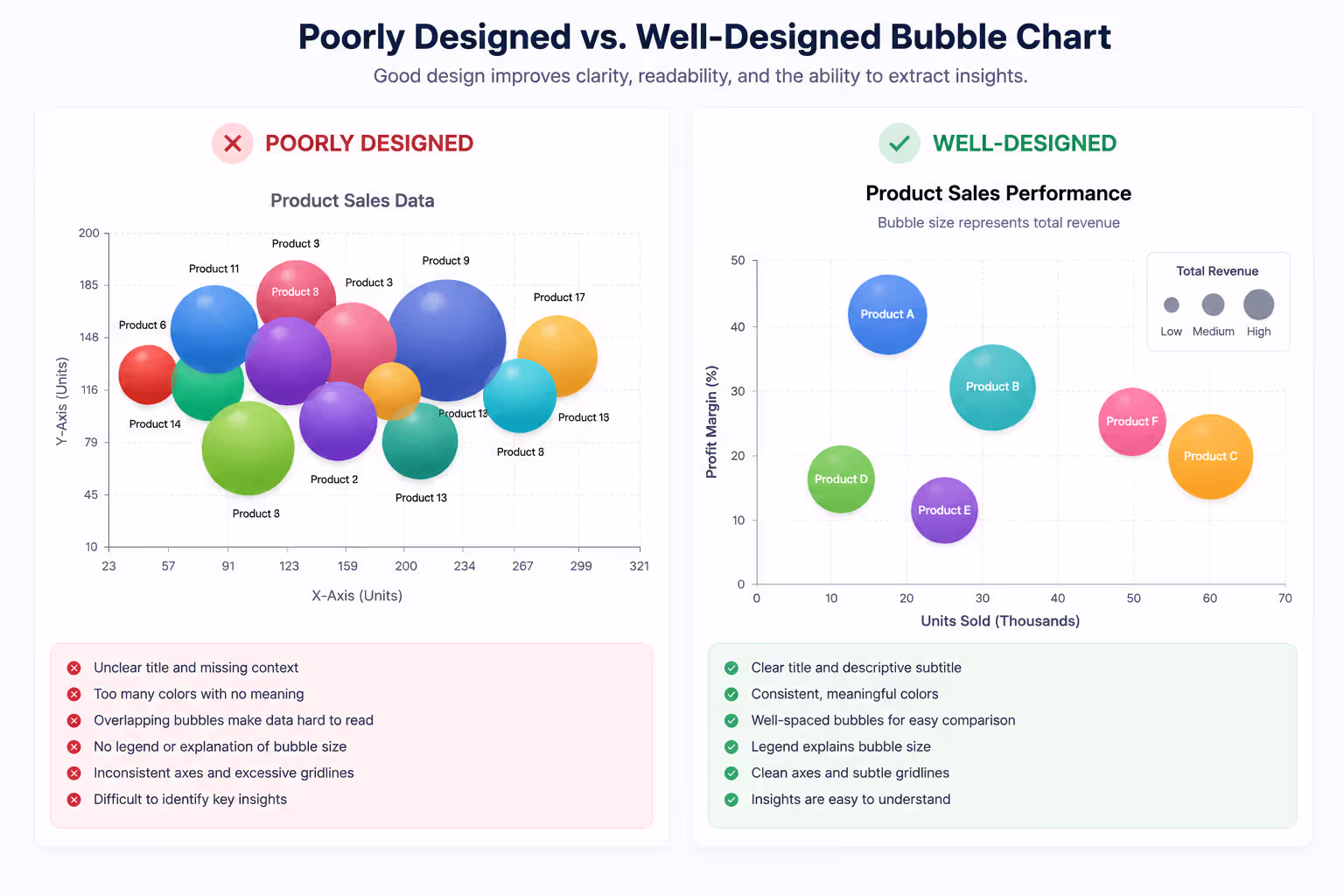

Common Mistakes When Using Bubble Charts

The biggest mistake is overcrowding. Cram 100 bubbles onto one chart, and you'll create a visual mess. Overlapping bubbles hide data points and make patterns impossible to spot.

If you have too many data points, filter them. Show the top 20 by size, or split the data into multiple charts. Sometimes a table is the honest answer.

Poor bubble sizing is another trap. If your size variable has a huge range—say, 1 to 10,000—small bubbles will be invisible. Consider using a logarithmic scale or capping extreme values. Document this choice so your audience knows.

Skipping labels or legends is a fast track to confusion. Users shouldn't have to guess what the axes represent or what bubble size means. Label everything.

Color misuse happens when designers use too many colors or choose colors that imply meaning they don't have. Red and green suggest good/bad or profit/loss. If that's not your intent, pick neutral colors like blue and orange.

Author: Camille Norcross;

Source: bostongolang.org

Another error: treating bubble charts as precise measurement tools. They're not. If your audience needs exact numbers, provide a data table alongside the chart.

Finally, don't add a fourth dimension (color) unless it genuinely adds insight. More complexity isn't always better. The simpler option usually wins here.

Bubble Maps and Advanced Bubble Chart Variations

Bubble maps layer bubble charts onto geographic maps. Each bubble represents a location—cities, countries, regions—and its size encodes a variable like population, sales, or COVID cases.

Bubble maps are powerful for regional analysis. They show not just the magnitude of a metric but also its geographic distribution. You can see at a glance that the largest markets are clustered on the coasts, or that disease outbreaks are concentrated in specific regions.

Tools like Mapbox, Leaflet, and Tableau make it easy to create interactive bubble maps. Users can zoom, pan, and hover over bubbles for details. This interactivity turns a static chart into an exploratory tool.

Liquid charts are a newer variation that combine bubble charts with flow diagrams. They show how entities move between states or categories over time. Think of customer segments shifting from "prospects" to "customers" to "churned," with bubble size representing segment size. These are still niche but useful for lifecycle analysis.

Interactive features like tooltips, filtering, and animation can make bubble charts more engaging. Hover over a bubble to see exact values. Click a legend item to hide a category. Animate the chart over time to show how data points move.

But interactivity has a cost. It only works in digital formats. If your chart will be printed or presented as a static image, keep it simple.

When should you use these advanced variations? Bubble maps when geography matters. Liquid charts when you're tracking transitions. Interactive features when your audience has time to explore.

FAQ: Bubble Chart Questions Answered

Bubble charts aren't the right tool for every job, but when you need to show how three variables interact, they're hard to beat. The key is knowing when to use them and how to design them so they clarify rather than confuse. Keep your data set manageable, size bubbles by area, label everything, and resist the urge to add complexity for its own sake. Done right, a bubble chart can reveal patterns that would take paragraphs to explain in words.
