Every project hits a wall when team members can't see the full picture. A developer codes a feature that breaks three downstream processes. A manager approves a workflow that nobody can actually execute. These problems share a root cause: the process lived only in someone's head.

Flow diagrams fix that. They turn invisible logic into something everyone can see, question, and improve. Whether you're mapping how data moves through a system or documenting how your team handles customer requests, a good diagram becomes the single source of truth.

What Is a Flow Diagram and Why It Matters

A flow diagram is a visual representation of a process, system, or workflow using standardized shapes connected by arrows. Each shape represents a specific type of step—decisions, actions, inputs, outputs—and the arrows show the sequence and relationships between them.

The core purpose is simple: make complex processes understandable at a glance. When you're explaining a ten-step approval process or a data pipeline with multiple branches, words alone create confusion. A diagram lets someone trace the path from start to finish in seconds.

Visual communication cuts through ambiguity. I've watched teams argue for hours about "how things work" until someone sketched the process on a whiteboard. The diagram revealed that half the team was following one procedure, half another. That clarity is why flow diagrams matter.

They're different from other diagram types in important ways. Mind maps explore ideas and relationships without a fixed sequence. Organizational charts show hierarchy and reporting structure. Gantt charts track project timelines. Flow diagrams specifically capture process—the step-by-step movement through a system. They answer "what happens next?" not "who reports to whom?" or "when is this due?"

The best diagrams serve two audiences: people who need to execute the process and people who need to improve it. Operators use them as reference guides. Analysts use them to spot bottlenecks, redundancies, and failure points.

Common Types of Flow Diagrams

Different problems need different diagram types. Using the wrong one is like bringing a street map to navigate a building's plumbing. Here's what each type does best.

Data Flow Diagrams for System Analysis

A data flow diagram (DFD) tracks how information moves through a system. It doesn't care about control flow or decision logic—it focuses purely on data: where it comes from, where it goes, what transforms it along the way.

DFDs use four symbol types. External entities (rectangles) represent sources or destinations outside your system—users, other applications, external databases. Processes (circles or rounded rectangles) transform data in some way. Data stores (open rectangles or parallel lines) hold information. Arrows show data movement and are always labeled with what's being transferred.

You'll typically create DFDs at different levels. A context diagram (Level 0) shows your entire system as one process with its external interactions. Level 1 breaks that single process into major subsystems. Level 2 and beyond decompose each subsystem further. This layered approach lets executives see the big picture while developers drill into implementation details.

System analysts love DFDs because they expose data redundancy and unnecessary transformations. If you see the same data flowing through five processes when two would work, you've found your optimization target.

Workflow Charts for Process Management

Workflow charts (often called workflow diagrams or simply flowcharts) map business processes from start to finish. They show decisions, actions, responsibilities, and the sequence that ties everything together.

The standard symbol set is bigger here. Ovals mark start and end points. Rectangles represent process steps or actions. Diamonds indicate decision points with multiple exit paths. Parallelograms show inputs or outputs. Arrows connect everything in sequence.

A good workflow chart answers practical questions: Who does what? What triggers this step? What happens if the answer is no? Where does this loop back if we need revisions?

These diagrams shine in process improvement projects. Map the current state, then create a future state diagram with bottlenecks removed. The before-and-after comparison makes the business case for change. One team I know reduced their invoice approval time from 12 days to 3 just by visualizing all the unnecessary handoffs.

Swimlane diagrams are a workflow chart variant that adds horizontal or vertical bands representing different roles or departments. Each process step sits in the lane of whoever's responsible. This format instantly reveals when a process ping-pongs between teams—usually a sign of inefficiency.

System Architecture Diagrams for Technical Planning

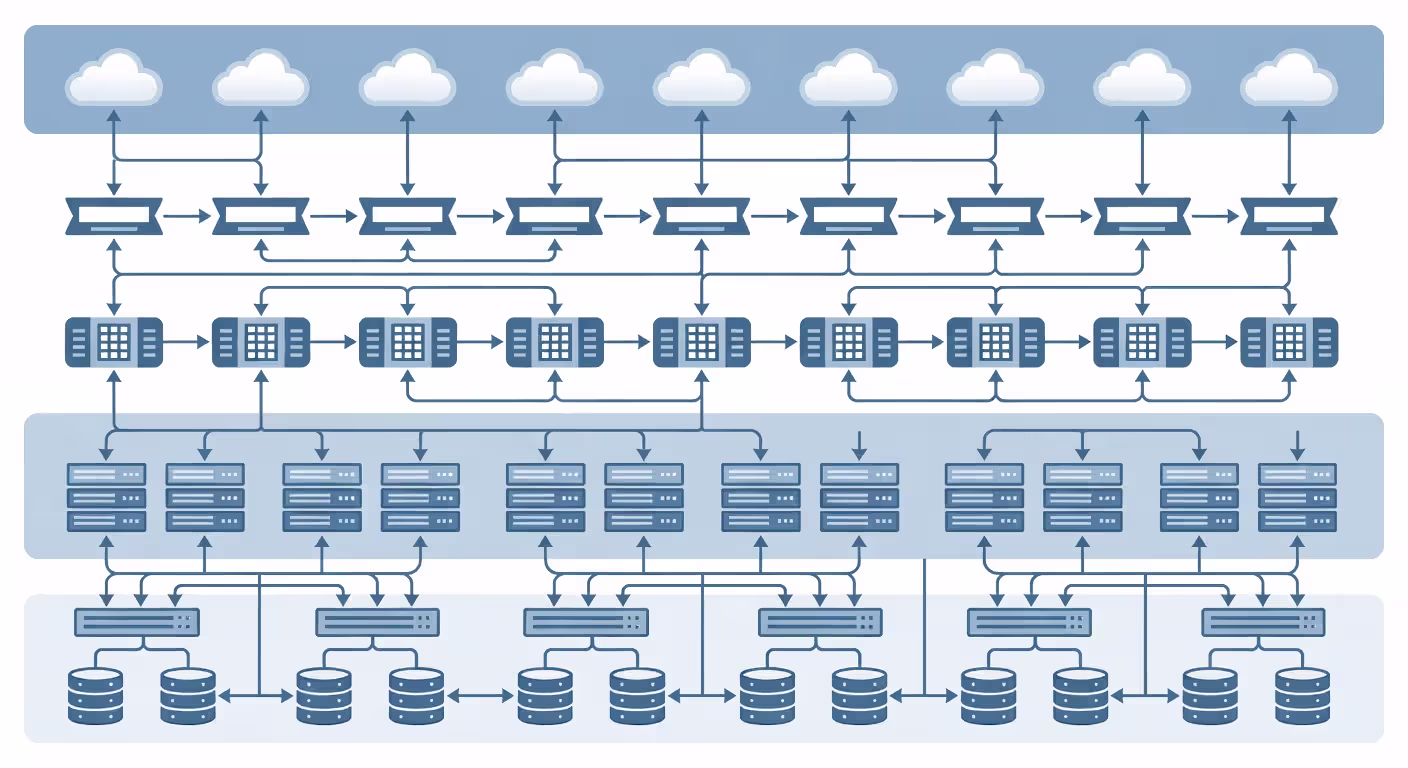

System architecture diagrams show the high-level structure of a technical system: servers, databases, applications, networks, and how they connect. They're less about sequence and more about components and relationships.

These diagrams come in many flavors. Deployment diagrams show physical or virtual hardware and what software runs where. Network diagrams map connections, protocols, and data flow between systems. Component diagrams break applications into modules and show their dependencies.

The notation varies by framework. Some teams use UML (Unified Modeling Language) standards. Others prefer informal box-and-arrow styles. What matters is consistency within your organization and enough detail for your audience.

Technical architects use these diagrams during design reviews to spot single points of failure, security gaps, or scaling bottlenecks. They're also essential for onboarding new engineers—you can't contribute to a system you don't understand.

One key difference from other flow diagrams: architecture diagrams are often non-linear. They show multiple simultaneous interactions rather than a single path from A to B. That's why they're better for representing distributed systems than sequential processes.

How to Create a Flow Chart Step by Step

Creating an effective flow chart is less about drawing skill and more about clear thinking. Here's the process that works.

Planning your diagram scope and audience comes first. Define what you're mapping: a specific process, a system interaction, a decision tree. Be ruthlessly specific. "How we handle customer complaints" is too broad. "How the support team escalates technical issues to engineering" is concrete.

Then identify your audience. A diagram for frontline staff needs different detail than one for executives. Operators need every exception path and decision criterion. Leadership needs the 30,000-foot view with major phases and outcomes.

Decide on boundaries. Where does this process start? Where does it end? What's inside scope and what's outside? If you're mapping order fulfillment, do you stop when the package ships or when the customer confirms receipt? These choices prevent scope creep.

Choosing symbols and notation standards keeps your diagram readable. Stick to common conventions unless you have a compelling reason to deviate. Rectangles for actions, diamonds for decisions, ovals for start/end—most people recognize these instantly.

Document your symbol key if you use specialized shapes. Don't make readers guess what a hexagon means in your system. The simpler option usually wins here. I've seen teams create elaborate symbol systems that looked impressive but confused everyone.

Color coding can help—blue for automated steps, orange for manual ones, red for exception paths. But don't overdo it. Too many colors create visual noise.

Mapping the process logically is where the real work happens. Start by listing every step in sequence. Then identify decision points: places where the path splits based on conditions. Each decision needs clear criteria. "Manager approves" isn't enough—what exactly are they checking?

Build the diagram from top to bottom or left to right—pick one direction and stay consistent. Place decision diamonds where paths diverge. Make sure every decision has at least two exit paths (yes/no, approve/reject, etc.). Label those paths clearly.

Watch for loops. If a rejected request goes back for revision, draw that feedback arrow explicitly. Loops are common in real processes but easy to forget when diagramming.

Connect every element. Orphaned shapes or arrows that lead nowhere signal incomplete thinking. If you can't connect something logically, you probably don't understand that part of the process yet.

Testing and refining your flowchart separates good diagrams from useless ones. Walk through it with someone who actually does the work. Can they follow it? Does it match reality? You'll discover missing steps, incorrect sequences, and decision criteria you got wrong.

Test edge cases. What happens if two approvers disagree? What if the system is down? Robust processes have exception paths, and your diagram should show them.

Simplify wherever possible. If three steps always happen in sequence with no decisions between them, consider combining them into one box labeled with the overall action. Detail is good; clutter is bad.

Get feedback from multiple stakeholders. The process owner sees it one way, the person executing it sees another, and the customer experiencing it sees a third. All perspectives matter.

Choosing the Right Flowchart Software

The right tool makes diagramming faster and collaboration easier. The wrong one becomes an obstacle.

Key features to look for start with a solid shape library. You need standard flowchart symbols, data flow diagram notation, and architecture diagram elements. Bonus points if you can create custom shapes for specialized needs.

Templates save time. Good flowchart software includes starter templates for common diagram types: basic flowcharts, swimlane diagrams, BPMN (Business Process Model and Notation) diagrams, network diagrams. You shouldn't build from scratch every time.

Smart connectors matter more than most people realize. Arrows should stay attached when you move shapes. They should auto-route around obstacles. They should let you add labels easily. Manual arrow wrangling wastes hours.

Export options determine how you'll share your work. PDF for documentation. PNG or SVG for presentations. Some tools export to code or integrate with documentation systems. Think about your workflow.

Collaboration and sharing capabilities have become non-negotiable. Multiple people need to view and edit diagrams. Real-time collaboration—Google Docs style—prevents version control nightmares.

Look for commenting features. Stakeholders should be able to ask questions or suggest changes directly on the diagram. Email threads about "the decision diamond in the upper right" are inefficient.

Version history lets you roll back mistakes or compare how the process has evolved. This matters more for living documents that get updated regularly.

Permissions control who can view versus edit. Not everyone needs editing rights, but many people need visibility.

Integration with existing tools amplifies value. If your team lives in Microsoft Teams or Slack, your diagramming tool should plug in there. If you store documentation in Confluence or Notion, look for native integrations.

Some advanced tools connect diagrams to live data sources. Imagine a system architecture diagram that updates automatically when infrastructure changes. Or a workflow chart that pulls current approval times from your ticketing system. These features are overkill for simple needs but transformative for complex environments.

API access matters for custom integrations. If you want to auto-generate diagrams from code or database schemas, you'll need programmatic access.

Popular options in 2026 include cloud-based platforms with strong collaboration features and desktop applications with advanced technical diagramming capabilities. The pattern I see most often is teams choosing cloud tools for business process diagrams and specialized software for technical architecture work.

Visual process documentation isn't optional anymore—it's how modern organizations maintain consistency at scale. The companies that invest in clear, accessible flow diagrams spend 40% less time on training and onboarding, and they catch process failures before they become customer problems. If you can't draw your process, you don't really understand it.
— Chen Michael

Common Mistakes When Building Workflows

Even experienced teams make predictable errors when creating flow diagrams. Here's what to avoid.

Overcomplicating the diagram is mistake number one. You don't need to show every tiny substep. If your flowchart needs a magnifying glass to read, you've gone too far.

The test is simple: can someone unfamiliar with the process understand the main flow in under two minutes? If not, simplify. Create high-level and detailed versions if you need both perspectives.

Too many decision points create spaghetti diagrams. If you have more than five or six decision diamonds on one page, consider whether you're really mapping one process or several. Break complex processes into multiple diagrams with clear handoff points.

Excessive detail also makes maintenance impossible. Processes change. If your diagram shows every field in every form, you'll spend all your time updating it instead of using it.

Ignoring stakeholder input creates diagrams that look pretty but don't reflect reality. The person who designed the process isn't always the person who executes it. And the executed process isn't always what was designed.

Talk to everyone involved. Frontline workers know the workarounds and shortcuts that never made it into official documentation. Managers know the decision criteria and approval authorities. Customers know what the process feels like from the outside.

Skipping this step produces diagrams that document the intended process while the actual process runs completely differently. That's worse than having no diagram at all because it creates false confidence.

Run workshops where stakeholders walk through the diagram together. Disagreements about "how things work" surface immediately. Those disagreements are valuable—they reveal inconsistency in execution.

Skipping documentation and updates turns your diagram into a historical artifact instead of a living tool. The process you mapped last year probably isn't the process you're running today.

Every diagram needs metadata: who created it, when, what version, what it covers. Add a revision history if the process changes frequently. Note assumptions or scope limitations.

Assign an owner responsible for keeping it current. Without clear ownership, diagrams decay. Someone needs to review and update them when processes change.

Build diagram reviews into your process improvement cycle. When you change a workflow, update the diagram before you roll out the change. Use the updated diagram to train people on the new process.

Store diagrams where people can find them. A brilliant workflow chart buried in someone's personal drive helps nobody. Put them in your knowledge base, wiki, or shared documentation system. Make them searchable.

Flow Diagram Types: Use Cases and Key Features

Here's how the main diagram types compare across practical dimensions:

Diagram Type

Primary Use

Best For

Complexity Level

Basic Flowchart

Sequential process mapping

Simple workflows, decision trees, standard operating procedures

Low to Medium

Data Flow Diagram

Information movement tracking

System analysis, data pipeline design, integration planning

Medium to High

Workflow Chart (Swimlane)

Cross-functional processes

Processes involving multiple teams, handoff visualization, responsibility mapping

Medium

System Architecture Diagram

Technical infrastructure design

Software system design, deployment planning, technical documentation

High

BPMN Diagram

Formal business process modeling

Enterprise process standardization, process automation, compliance documentation

High

The right choice depends on what question you're trying to answer. Tracing data? Use a DFD. Clarifying who does what? Swimlane workflow. Designing system components? Architecture diagram. Most organizations use multiple types for different purposes.

FAQ: Flow Diagram Questions Answered

What is the difference between a flowchart and a workflow chart?

The terms are often used interchangeably, but there's a subtle distinction. A flowchart is the broader category—any diagram showing sequential steps and decisions. A workflow chart specifically maps business processes with attention to roles, responsibilities, and handoffs between people or departments. All workflow charts are flowcharts, but not all flowcharts are workflow charts. If you're mapping a pure algorithm or decision tree, it's a flowchart. If you're mapping how your team processes invoices across three departments, it's a workflow chart.

Do I need special software to create a data flow diagram?

No, you don't need specialized software, though it helps. You can create basic data flow diagrams in general-purpose tools like Microsoft PowerPoint, Google Slides, or even drawing tools. Many teams sketch initial DFDs on whiteboards or paper during analysis sessions. That said, dedicated flowchart software makes the process faster and produces cleaner results. These tools include DFD-specific shape libraries, smart connectors, and templates that follow standard notation. For professional work or complex systems, the time savings justify the investment. For learning or simple diagrams, start with whatever tool you already have.

How detailed should a system architecture diagram be?

It depends entirely on your audience and purpose. For executive presentations or initial planning, show only major components and their relationships—application tiers, primary databases, external integrations. For implementation teams, include specific technologies, protocols, ports, and deployment details. A good rule: include enough detail that your audience can make the decisions they need to make. If developers need to build the system, they need implementation details. If leadership needs to approve the approach, they need conceptual clarity. Create multiple diagram levels if you're serving both audiences. And remember that architecture diagrams age quickly—focus on elements that change slowly, not configuration details that shift weekly.

Can I use flow diagrams for non-technical processes?

Absolutely. Flow diagrams work for any process with steps and decisions. Teams use them to map hiring workflows, customer service procedures, content approval processes, event planning checklists, and countless other non-technical activities. The visual format helps regardless of whether you're mapping software or human activities. In fact, some of the biggest wins come from diagramming informal processes that previously existed only as tribal knowledge. When you map how your team "usually handles" something, you often discover inconsistency, unnecessary complexity, or missing steps. The notation might feel technical at first, but the underlying concept—visualizing sequence and logic—applies universally.

What are the standard symbols used in flow diagrams?

The most common symbols are: oval or rounded rectangle for start and end points, rectangle for process steps or actions, diamond for decision points, parallelogram for inputs and outputs, and arrows for flow direction. Data flow diagrams add circles for processes, open rectangles for data stores, and squares for external entities. System architecture diagrams use rectangles for components, cylinders for databases, and clouds for external services, though notation varies more here. Stick to these basics and you'll be understood by most audiences. Specialized notations like BPMN add more symbols for events, gateways, and message flows, but you don't need those unless you're doing formal business process modeling. When in doubt, use simple shapes and label them clearly—clarity beats notation purity.

How often should I update my workflow charts?

Update them whenever the process changes significantly. If you add a new approval step, remove a bottleneck, or change who's responsible for something, update the diagram right away. For stable processes, review diagrams quarterly or annually to catch drift—small changes that accumulated without formal updates. Treat your diagrams like code documentation: they're only valuable if they reflect current reality. Set a review schedule based on how quickly your processes evolve. Fast-moving teams might review monthly. Stable operations might review yearly. The worst scenario is a diagram that's three years out of date but still being used for training—you're actively teaching people the wrong process. If you can't commit to keeping a diagram current, it's better not to create it at all.

Flow diagrams transform invisible processes into shared understanding. They're not just documentation—they're thinking tools that force clarity, reveal problems, and enable improvement. Start simple, focus on the processes that cause the most confusion or friction, and iterate based on feedback. The goal isn't perfect diagrams; it's better processes and aligned teams.
