Database Diagram Guide

Understanding your database structure shouldn't require a PhD in computer science. Yet many teams struggle to document and communicate how their data connects, leading to confusion, bugs, and costly redesigns. A database diagram solves this problem by turning abstract relationships into something everyone can see and understand. Whether you're building your first app or managing enterprise systems, knowing how to create and read these diagrams will save you hours of frustration and help your team work smarter.

What Is a Database Diagram?

A database diagram is a visual representation of your database structure. It shows tables, columns, data types, and—most importantly—how everything connects.

Think of it as a blueprint. Just as architects don't build houses without plans, developers shouldn't build databases without diagrams.

The core components are straightforward:

Tables (or entities) represent the main objects in your system. In an e-commerce database, you'd have tables for customers, orders, products, and payments.

Columns (or attributes) are the specific pieces of information each table holds. A customer table might include columns for customer_id, email, name, and registration_date.

Keys define uniqueness and relationships. A primary key uniquely identifies each row in a table. A foreign key links one table to another, establishing relationships between data.

Relationships show how tables connect. A customer can place many orders. An order contains multiple products. These connections form the backbone of relational database design.

The visual format matters because humans process images 60,000 times faster than text. You can spot a missing relationship in seconds on a diagram. In code? It might take hours of debugging.

Database diagrams serve multiple audiences. Developers use them to plan table structures before writing a single line of code. Database administrators rely on them to optimize performance and troubleshoot issues. Project managers and stakeholders use simplified versions to understand system capabilities without diving into technical details.

The most common notation systems are Entity-Relationship (ER) diagrams, which use rectangles for entities and diamonds for relationships, and Unified Modeling Language (UML), which offers more detail about data types and constraints. Crow's foot notation is popular for showing cardinality—whether relationships are one-to-one, one-to-many, or many-to-many.

Author: Julian Crestmoor;

Source: bostongolang.org

Types of Database Diagrams and Related Visualizations

Not all diagrams serve the same purpose. Understanding the differences helps you pick the right tool for the job.

Entity-Relationship (ER) diagrams focus on the conceptual model. They show what entities exist and how they relate, without worrying about implementation details. You'll use these early in design when you're still figuring out your data model.

Schema diagrams get more specific. They include actual table names, column names, data types, constraints, and indexes. These are what you'll reference during development and maintenance. A schema diagram tells you that the user_id column is an integer, not null, and auto-increments.

Physical diagrams go even deeper, showing how data is stored on disk, including partitions, tablespaces, and storage parameters. Database administrators use these for performance tuning.

But database diagrams aren't the only visualizations you'll encounter in software projects. Let's clear up some common confusion.

Database Diagrams vs. Data Flow Diagrams

A data flow diagram (DFD) shows how information moves through a system. It tracks inputs, processes, outputs, and data stores, but it doesn't show database structure.

Here's the key difference: a database diagram is static—it shows structure. A data flow diagram is dynamic—it shows movement.

Imagine you're documenting an order processing system. Your database diagram shows the orders table, customers table, and their relationship. Your data flow diagram shows how customer information flows from the web form, through validation, into the database, and then to the shipping system.

You need both, but they're not interchangeable. A common mistake is trying to show data flow on a database diagram. It gets messy fast.

Database Diagrams vs. Architecture Diagrams

Architecture diagrams and system architecture diagrams show the big picture: servers, applications, networks, and how components communicate. They might include a database as a single box labeled "PostgreSQL Database" without showing what's inside.

A database diagram zooms into that box. It shows the internal structure that the architecture diagram abstracts away.

Think of it this way: an architecture diagram shows that your web application connects to a database. The database diagram shows what that database actually contains and how the tables relate.

Workflow charts map business processes and decision points. They answer questions like "What happens when a customer cancels an order?" with steps, conditions, and branches. They're about procedures, not data structure.

You might create a workflow chart for your approval process and a database diagram for the tables that store approval data. Different purposes, different diagrams.

When and Why You Need a Database Diagram

The short answer? Always. But let me be more specific.

During development planning, diagrams help you think through your data model before you commit to code. Changing a diagram takes seconds. Changing a production database with millions of rows? That's a migration nightmare.

I've seen teams skip this step to "save time" and end up rewriting their entire data layer six months later. The pattern I see most often is developers who start coding immediately, realize they forgot crucial relationships, and then try to retrofit foreign keys into existing data. Don't be that team.

For documentation, database diagrams create a single source of truth. New developers can understand your system in minutes instead of days. When someone asks "Where do we store customer preferences?" you point to the diagram instead of explaining it for the hundredth time.

During troubleshooting, diagrams help you trace problems. Slow queries often result from missing indexes or inefficient joins. A diagram makes these issues visible. You can see that you're joining across four tables when two would suffice.

For team collaboration, diagrams bridge the communication gap between technical and non-technical stakeholders. Your CEO doesn't need to understand SQL, but they can look at a diagram and understand that customers connect to orders, which connect to products.

During system migrations, whether you're moving to a new database platform or merging systems, diagrams let you compare structures side-by-side. You can identify conflicts, plan data transformations, and ensure nothing gets lost in translation.

The benefits multiply across roles. Developers use diagrams to write better queries. Database administrators use them to optimize indexes and partitions. QA teams use them to design test cases that cover all relationships. Product managers use them to understand technical constraints when planning features.

One counterintuitive benefit: diagrams expose bad design decisions early. If your diagram looks like spaghetti, your database probably is spaghetti. Complexity that's hard to draw is hard to maintain.

Author: Julian Crestmoor;

Source: bostongolang.org

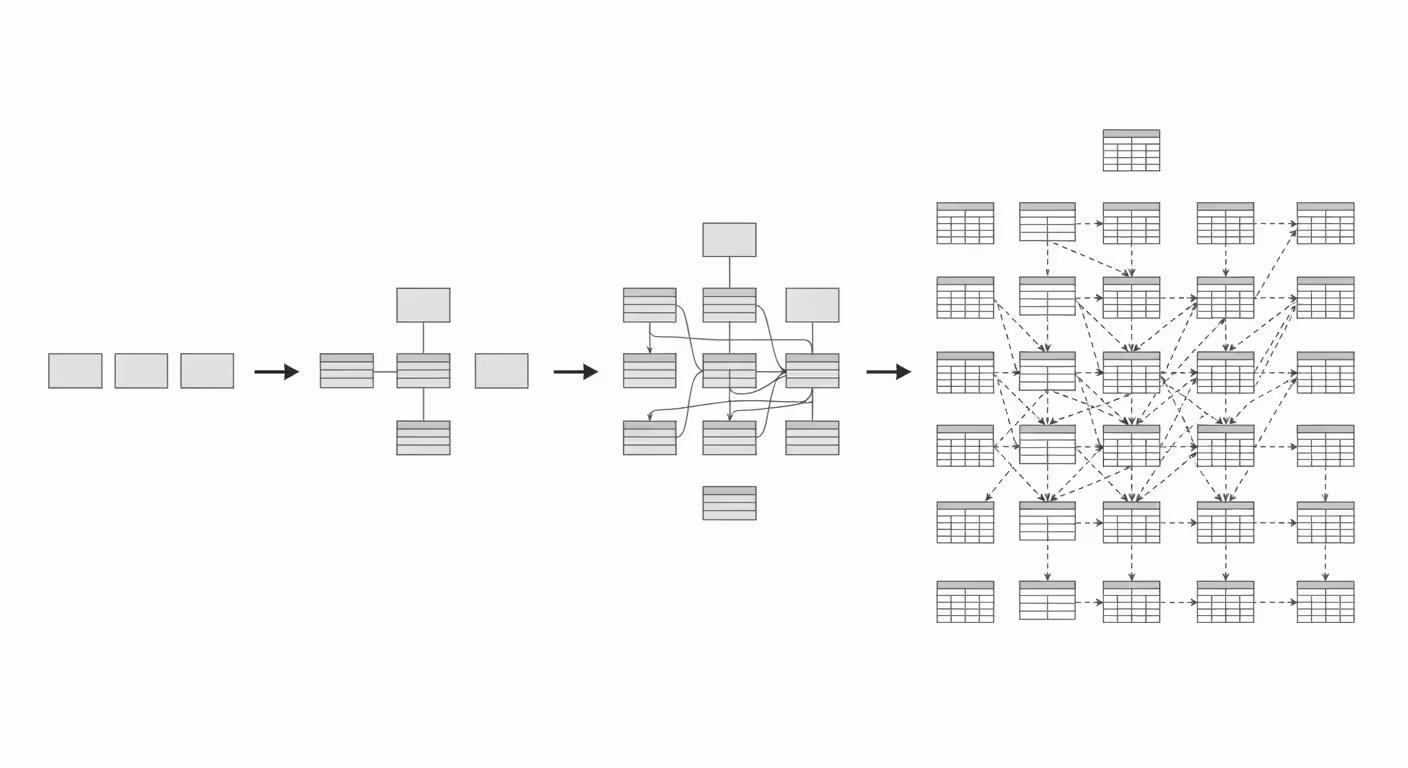

How to Create a Database Diagram

Creating an effective database diagram isn't complicated, but it does require a systematic approach.

Step 1: Identify your entities. Start by listing the main "things" your system needs to track. For a library system: books, members, loans, authors. For a hospital: patients, doctors, appointments, prescriptions.

Write them down. Don't worry about relationships yet.

Step 2: Define attributes for each entity. What information do you need to store about each entity? Books need titles, ISBNs, publication dates. Members need names, email addresses, membership IDs.

Mark which attributes uniquely identify each record. That's your primary key. Book ISBN, member ID, loan number—these ensure no duplicates.

Step 3: Determine relationships. How do your entities connect? Ask questions like:

• Can a member borrow multiple books? (Yes—one to many)
• Can a book have multiple authors? (Yes—many to many)
• Does each loan belong to exactly one member? (Yes—many to one)

Write these down in plain English before you draw anything.

Step 4: Choose your notation. For most purposes, crow's foot notation works well. It's intuitive: a line with three prongs means "many," a single line means "one." A circle means "optional," a perpendicular line means "required."

If you're working with object-oriented systems, UML might fit better. It aligns more closely with how classes and objects work in code.

Step 5: Select your tool. More on this below, but pick something appropriate for your needs. Quick brainstorming? Pen and paper works. Formal documentation? Use dedicated database software or diagramming tools.

Step 6: Draw your diagram. Place your most important tables in the center. Connect them with relationship lines. Add cardinality markers. Label foreign keys clearly.

Keep it clean. Don't cross lines unnecessarily. Group related tables together. Use consistent spacing.

Best practices to follow:

Use clear, descriptive names. Avoid abbreviations unless they're standard in your industry. "customer_email" beats "cust_em."

Normalize your data. Don't store the same information in multiple places. If you find yourself duplicating columns across tables, you probably need to create a new relationship.

Document constraints. Note which fields can't be null, which have default values, which have unique constraints. This prevents data quality issues later.

Version your diagrams. As your database evolves, keep old versions for reference. Tag them with dates or version numbers.

Get feedback early. Show your diagram to other developers, DBAs, and even non-technical stakeholders. Fresh eyes catch problems you've overlooked.

The simpler option usually wins here. If you're torn between a complex normalized structure and something more straightforward, start simple. You can always refactor later, but you can't un-confuse a team that doesn't understand your overly clever design.

Author: Julian Crestmoor;

Source: bostongolang.org

Database Software and Tools for Creating Diagrams

You've got options. Lots of them. The right choice depends on your budget, technical requirements, and team preferences.

Database management systems with built-in diagramming:

Most modern database software includes diagram tools. MySQL Workbench, pgAdmin for PostgreSQL, and Microsoft SQL Server Management Studio all let you generate diagrams directly from your database schema. They can also reverse-engineer diagrams from existing databases.

The advantage? These tools understand your database intimately. They know data types, constraints, and relationships. The disadvantage? They're database-specific. If you switch from MySQL to PostgreSQL, you'll need different tools.

Dedicated diagramming and data visualization tools:

These tools specialize in creating diagrams but don't connect directly to your database (though many integrate via plugins).

Here's a comparison of popular options:

What to consider when choosing:

Do you need collaboration features? If multiple people will work on diagrams simultaneously, cloud-based tools with real-time editing are worth the investment.

What's your technical skill level? Tools like dbdiagram.io use code-like syntax—great for developers, intimidating for designers. Visual drag-and-drop tools have a gentler learning curve.

Do you need to generate SQL from diagrams? Some tools can output CREATE TABLE statements directly from your diagram. This speeds up implementation and reduces errors.

What's your budget? Free tools like Draw.io and dbdiagram.io (free tier) work surprisingly well. But if you're documenting complex enterprise systems, paid tools offer better organization, versioning, and support.

How will you share diagrams? Consider whether you need to embed diagrams in documentation, export to specific formats, or integrate with other tools like Confluence or Notion.

For small projects or personal learning, start with free tools. For professional work, the time saved by paid tools usually justifies the cost. A $10/month subscription that saves 30 minutes per week pays for itself quickly.

A database is a model of reality. Like any model, it is an abstraction that must balance accuracy with simplicity. The visual representation of that model—the diagram—is often more important than the database itself, because it's the diagram that humans must understand, maintain, and evolve.

— Date Christopher J.

Common Mistakes When Designing Database Diagrams

Even experienced developers make these errors. Awareness helps you avoid them.

Overcomplicating the structure. More tables don't mean better design. I've seen diagrams with 50+ tables for systems that needed 15. Every additional table adds joins, complexity, and maintenance burden.

Ask yourself: does this table serve a distinct purpose, or am I splitting data unnecessarily? If two tables always get queried together and have a one-to-one relationship, they probably should be one table.

Ignoring normalization principles. Normalization reduces redundancy and improves data integrity. If you're storing customer addresses in both the customers table and the orders table, you're asking for inconsistencies.

But don't over-normalize either. Sometimes denormalization makes sense for performance. The key is making that choice deliberately, not by accident.

Poor naming conventions. Inconsistent names cause confusion. If one table uses "customer_id" and another uses "custID," developers will make mistakes. Pick a convention and stick to it.

Avoid generic names like "data," "info," or "details." Be specific. "shipping_address" is better than "address" when you also have billing addresses.

Missing or incorrect relationships. Forgetting foreign keys is surprisingly common. You remember to create the orders table and the customers table, but you forget to explicitly define the relationship between them.

The result? Your diagram looks right, but your database allows orphaned records—orders with no customer, products with no category.

Lack of documentation. A diagram without context is just boxes and lines. Add notes explaining non-obvious design decisions. Why did you use a many-to-many relationship here? Why is this field nullable?

Future you (or your replacement) will thank you.

Not updating diagrams. Databases evolve. You add a column here, a table there. If you don't update the diagram, it becomes useless. Worse, it becomes misleading, which is worse than having no diagram at all.

Make diagram updates part of your workflow. When you write a migration, update the diagram. Treat it like code documentation—because it is.

Choosing the wrong level of detail. High-level diagrams for executives shouldn't show every column and index. Detailed technical diagrams for developers should. Create multiple versions for different audiences rather than trying to make one diagram serve everyone.

Before/after example: I once inherited a diagram that showed 40 tables with every column, constraint, and index. It was technically complete but visually overwhelming. I created three versions: a high-level view showing major entities and relationships, a mid-level view showing tables and primary/foreign keys, and a detailed view with everything. Each served its purpose without overwhelming its audience.

Author: Julian Crestmoor;

Source: bostongolang.org

Database Software and Tools for Creating Diagrams

The right tool makes the difference between a diagram you'll actually maintain and one that gets abandoned after the first draft.

Native database tools remain the most reliable choice for technical accuracy. MySQL Workbench can reverse-engineer your entire database into a diagram with one click. SQL Server Management Studio does the same for Microsoft environments. These tools understand data types, indexes, and constraints at a level generic tools can't match.

The trade-off? They're database-specific and sometimes clunky for collaboration. You can't easily share a MySQL Workbench file with someone who doesn't have MySQL installed.

Cloud-based diagramming platforms excel at collaboration. Lucidchart and Miro let your entire team edit simultaneously. Changes sync in real-time. You can comment, suggest edits, and track versions. For distributed teams, this workflow is hard to beat.

The downside is cost. Per-user monthly fees add up, especially for larger teams. And you're dependent on internet connectivity and the vendor's uptime.

Code-based tools like dbdiagram.io appeal to developers who think in syntax. You write:

The tool generates the diagram automatically. It's fast, version-controllable with git, and great for rapid iteration. But non-technical stakeholders find it intimidating.

Free and open-source options like Draw.io (diagrams.net) offer surprising power without any cost. You get shapes for database entities, relationship connectors, and export options. The interface isn't as polished as commercial tools, but it's more than adequate for most projects.

The catch? No database-specific intelligence. Draw.io doesn't know what a foreign key is—you're just drawing boxes and lines. You're responsible for accuracy.

Specialized database design tools like Vertabelo and SqlDBM focus exclusively on database modeling. They understand database concepts deeply, can generate SQL for multiple database platforms, and often include team collaboration features.

These tools sit in a sweet spot for professional database work: more capable than generic diagramming tools, more collaborative than native database software. Pricing typically ranges from $20-100 per month depending on features and team size.

What works in practice:

Small teams often start with free tools and upgrade when collaboration becomes painful. Large organizations typically standardize on one or two tools across all projects to reduce training overhead and ensure compatibility.

The most successful approach I've seen combines tools: use your database's native tool for detailed technical diagrams and schema management, then use a collaborative tool like Lucidchart for simplified diagrams you'll share with stakeholders.

Don't overthink it. Pick something, create your first diagram, and adjust based on what frustrates you. The perfect tool matters less than actually creating and maintaining diagrams.

Frequently Asked Questions About Database Diagrams

Database diagrams aren't just documentation—they're thinking tools that help you design better systems, communicate more clearly, and solve problems faster. Whether you're starting a new project or documenting an existing system, taking the time to create clear, accurate diagrams pays dividends every day. Start simple, keep them updated, and watch how much easier database work becomes when everyone can see the structure instead of just imagining it.
